Start ShoppingKFI Winch Mount Application Chart - Fits 2500-4500 lb Winches (Warn, Superwinch, Smittybilt) | Mounts/Brackets
Fits your
May not fit your
Description

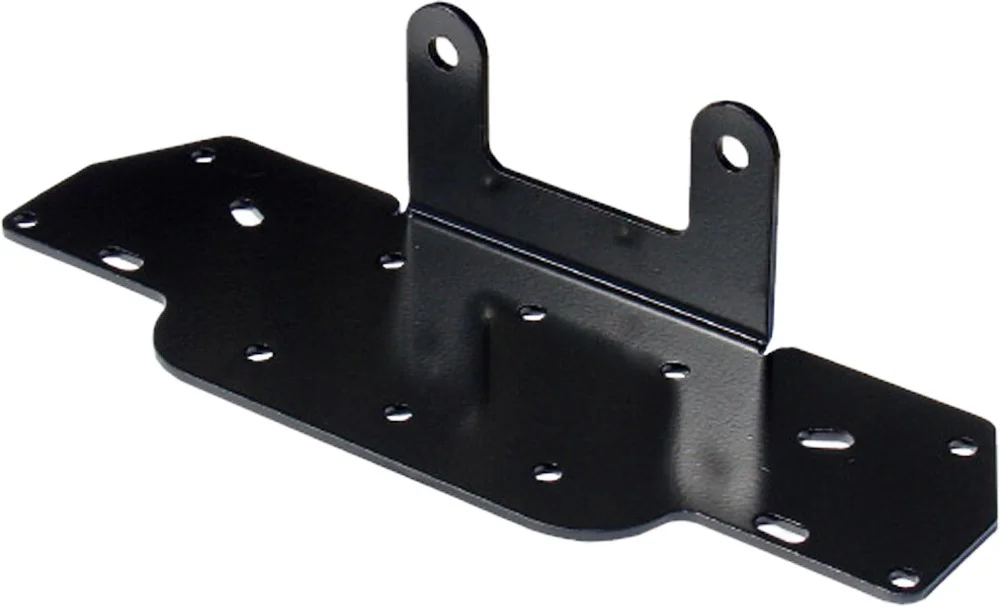

Upgrade your powersports setup with the KFI 100570 Winch Mount Application Chart, a precision-engineered bracket designed for maximum compatibility and durability. This essential tool simplifies winch installation by providing clear guidance for mounting 2500-4500 lb winches from leading brands like Warn, Superwinch, and Smittybilt. Its heavy-duty steel construction ensures long-lasting performance in demanding off-road environments.
Key Features
- 1.5" Steel Tubing Construction: Provides exceptional strength and durability for heavy-duty use, resisting deformation under stress.
- Black Powder Coat Finish: Offers corrosion resistance and a sleek, professional appearance that withstands harsh weather conditions.
- Universal Compatibility: Works with most 2500-4500 lb winches from Warn, Superwinch, Smittybilt, and other major brands for versatile installation options.
- Compact Design: 12" x 8" x 6" dimensions make it easy to store and handle while maintaining structural integrity.
Why Choose This Product
Whether you're tackling rocky trails, muddy terrain, or deep snow, the KFI Winch Mount Application Chart delivers unmatched reliability and ease of use. Its pre-engineered design eliminates guesswork during installation, while the powder-coated steel ensures long-term durability. The chart's compatibility with multiple winch brands makes it a versatile addition to any powersports vehicle, offering peace of mind for riders who demand performance and resilience in extreme conditions.
